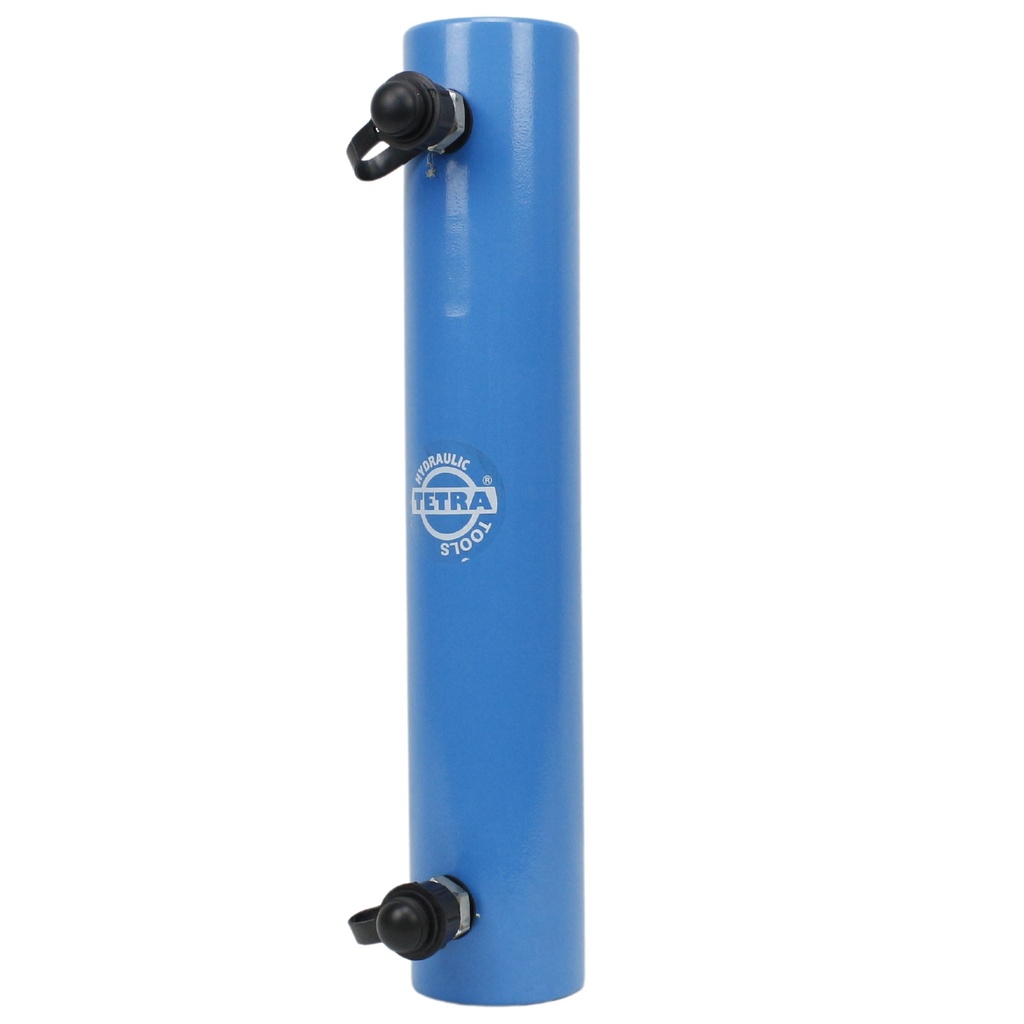

TETRA THC-50200D, Double Acting Hydraulic Cylinder, hydraulic return type, 50 ton, stroke 200 mm, closed height 315 mm, IMPA 615150
Double acting Hydraulic Cylinder
- Type: hydraulic return
- Lifting capacity: 50 ton
- Stroke: 200 mm
- Closed height: 315 mm
Article number: 12365
IMPA: 615150
Attachments
All
Size: 479.145KB
3
Brochures
Size: 479.145KB
3
Specifications
| Hydraulic Cylinder: Type | Double acting |
| Portable Hydraulic Jacks: Workload(tons) | 11 to 50 ton |
| Portable Hydraulic Jacks: Closed Height(mm) | larger as 201 mm |
| Portable Hydraulic Jacks: Max stroke (mm) | 151 mm and up |
