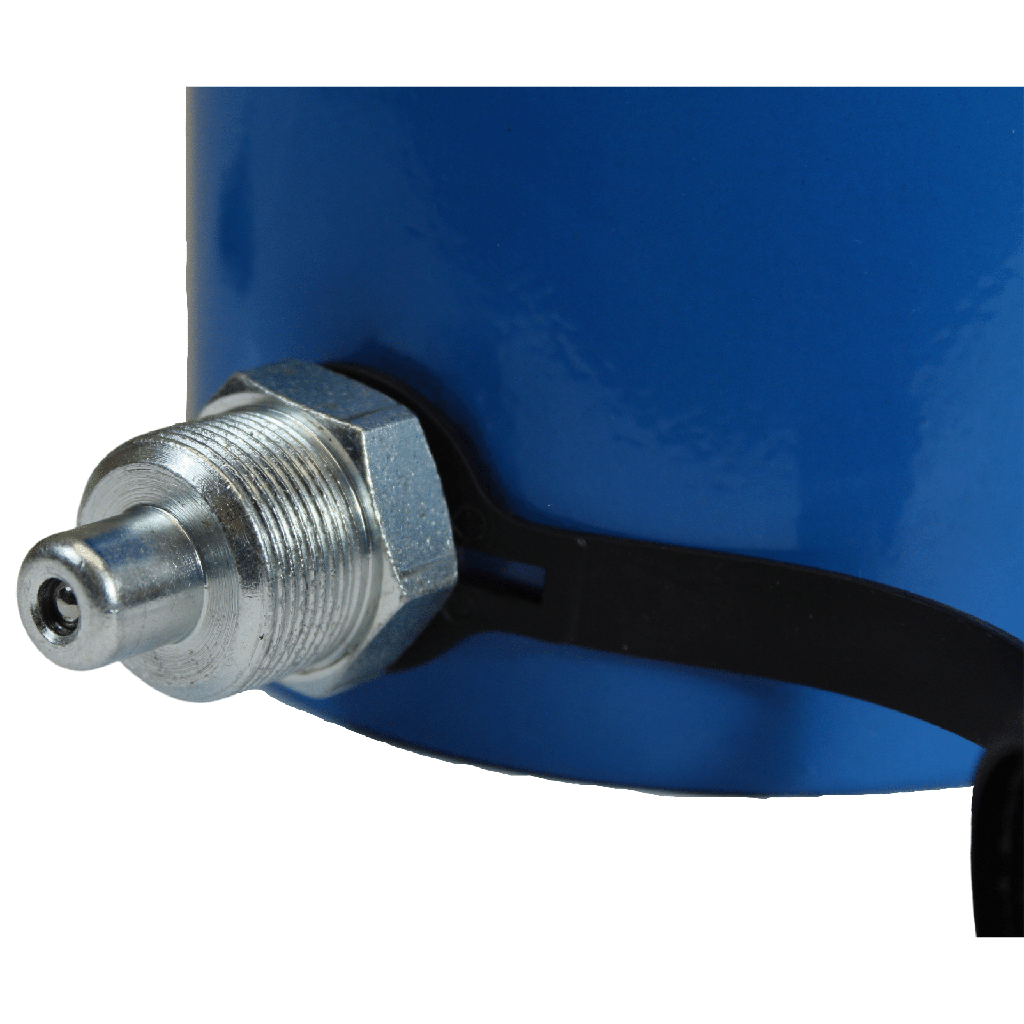

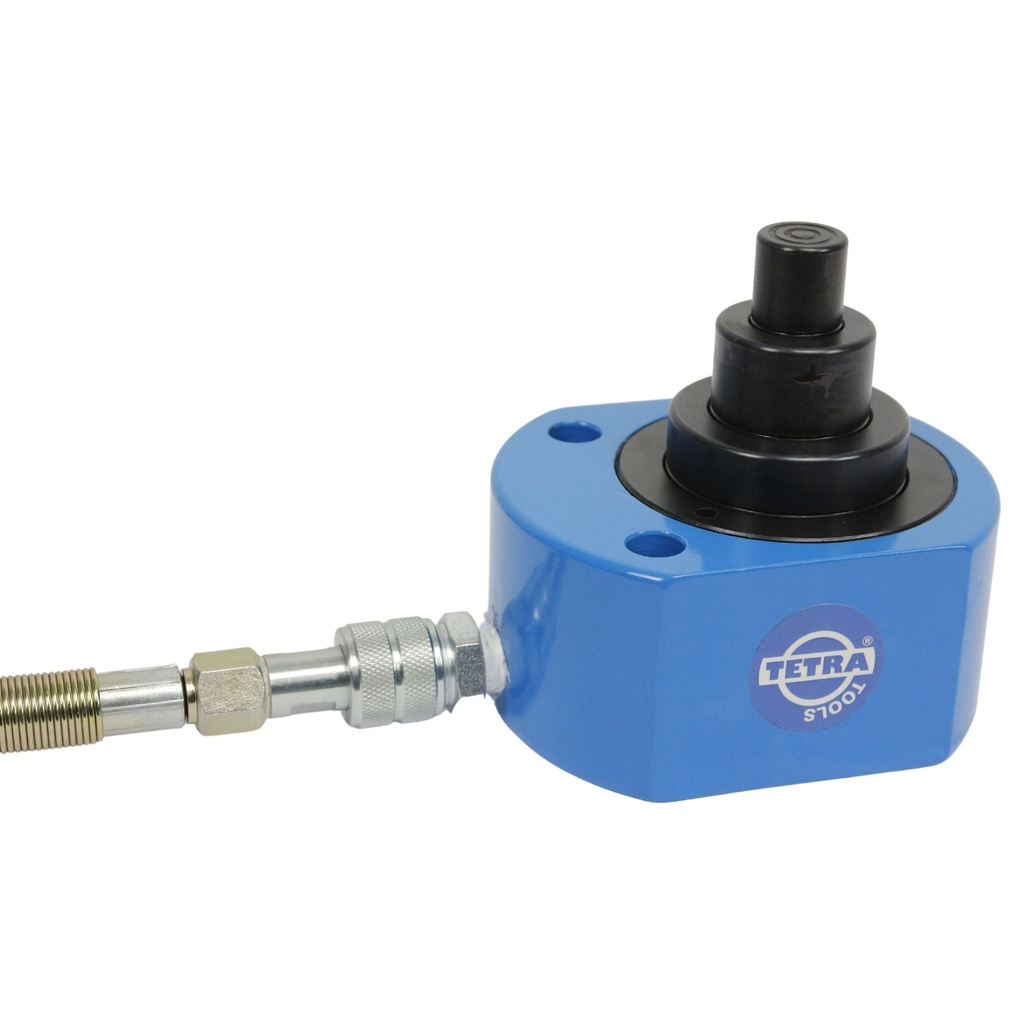

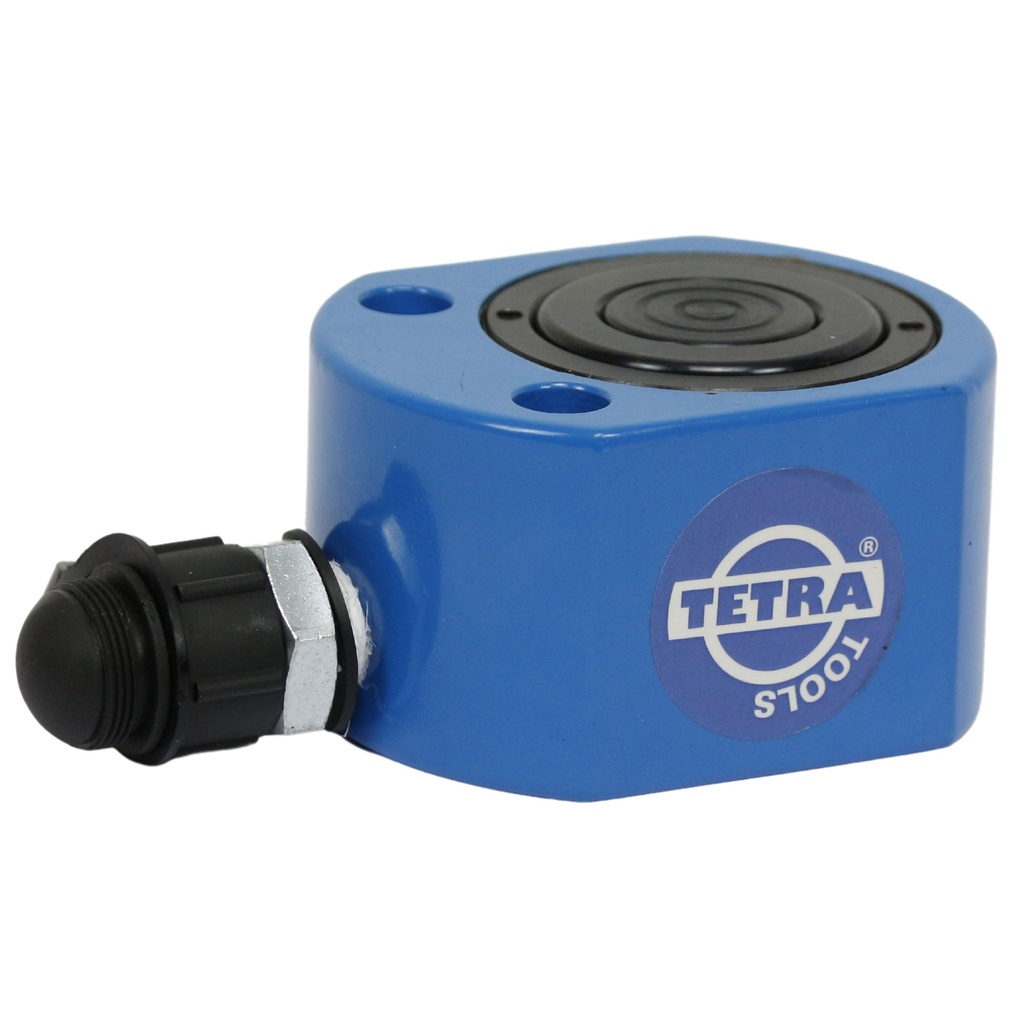

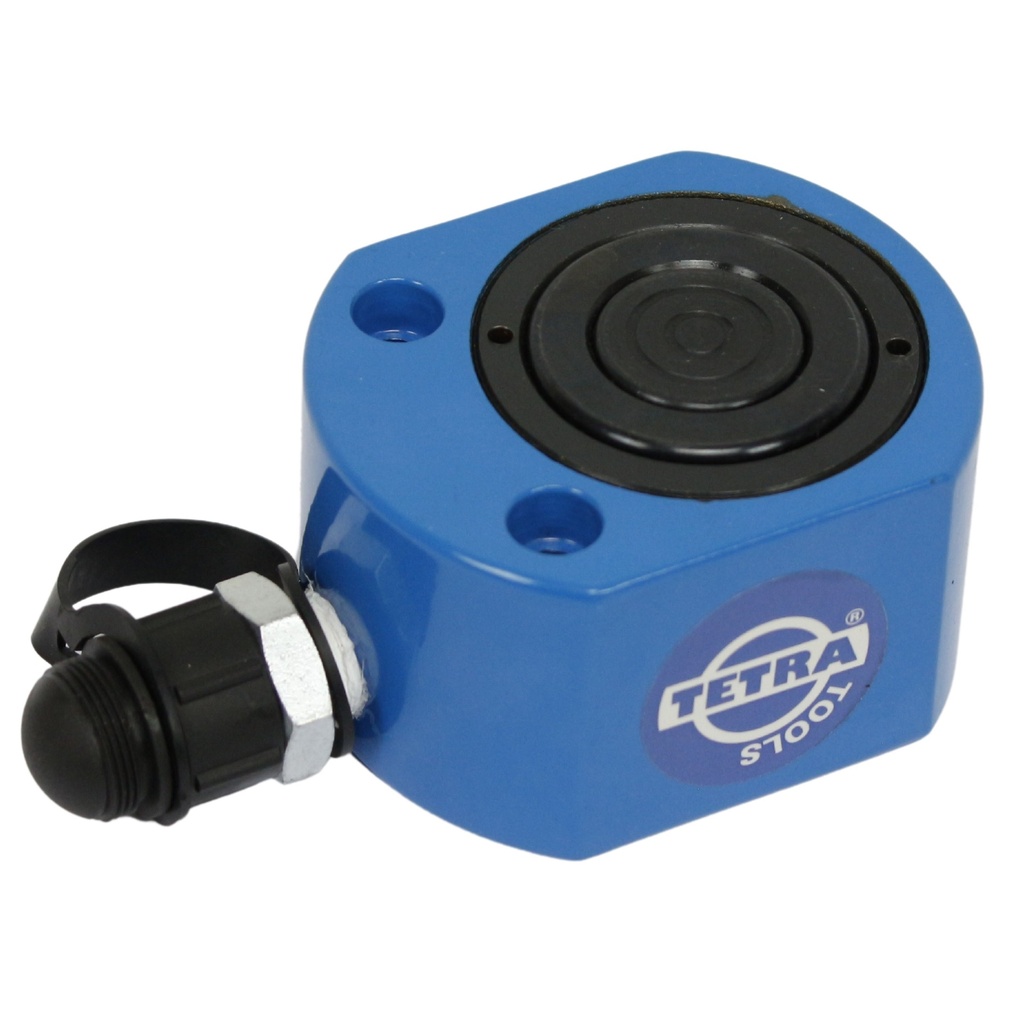

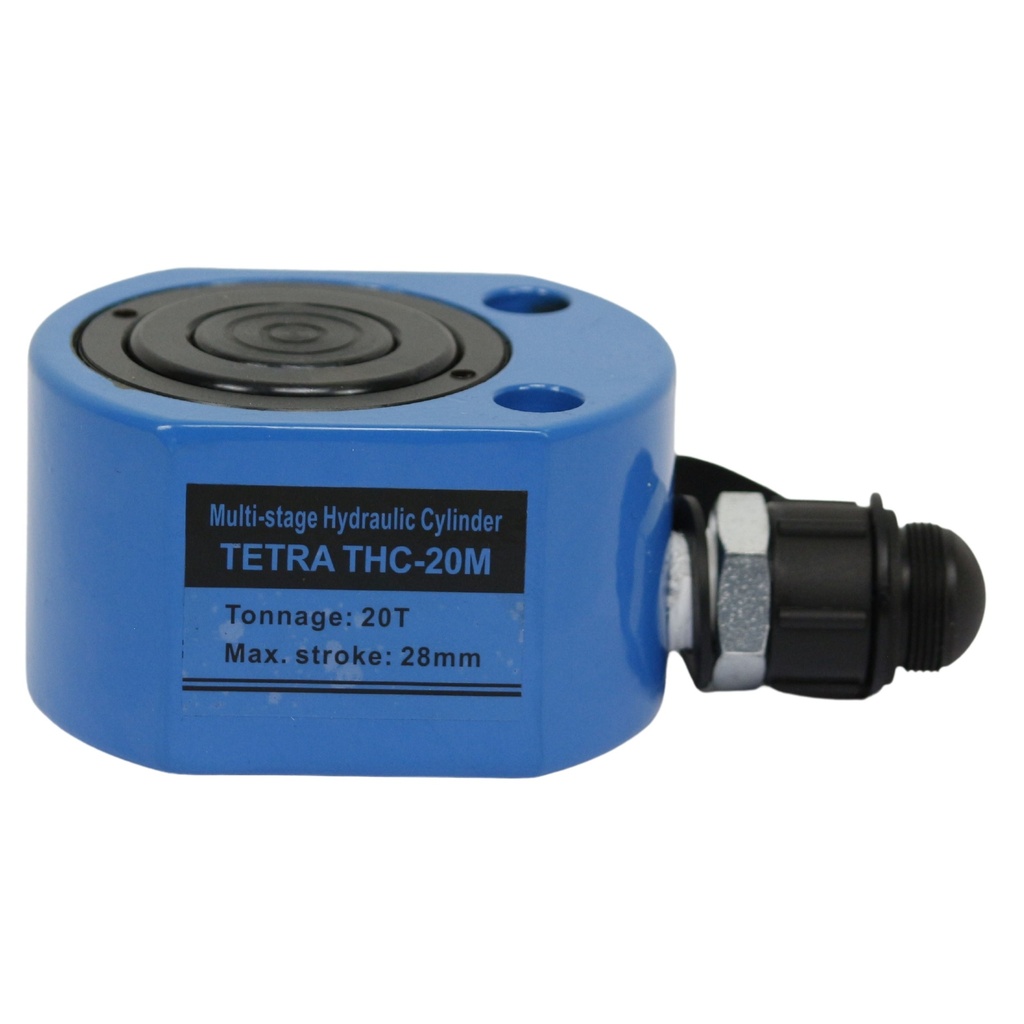

TETRA THC-20M, Multi-stage Hydraulic Cylinder, 20 ton, stroke 28 mm, closed height 55 mm
Hydraulic Multi-stage Cylinder
- Type: multi-stage with spring return
- Lifting capacity: 20 ton
- Stroke: 28 mm
- Closed height: 55 mm
Article number: 12362
Attachments
All
Size: 433.323KB
15
Brochures
Size: 433.323KB
15
Specifications
| Hydraulic Cylinder: Type | Multi-stage (spring return) |
| Portable Hydraulic Jacks: Workload(tons) | 11 to 50 ton |
| Portable Hydraulic Jacks: Closed Height(mm) | less then 100 mm |
| Portable Hydraulic Jacks: Max stroke (mm) | up to 50 mm |
