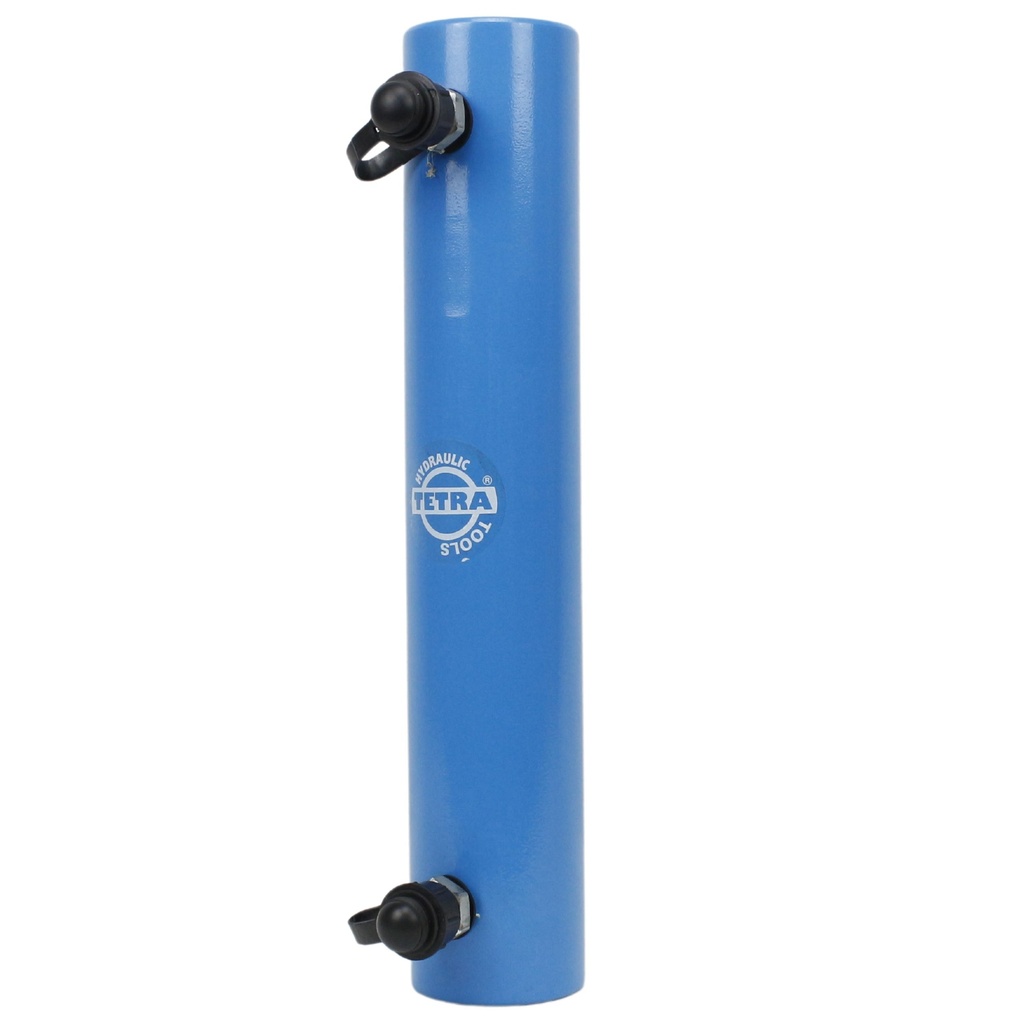

TETRA THC-20300D, Double Acting Hydraulic Cylinder, hydraulic return type, 20 ton, stroke 300 mm, closed height 400 mm, IMPA 615149
Hydraulic Cylinder
- Type: double acting
- Lifting capacity: 20 ton
- Stroke: 300 mm
- Closed height: 400 mm
Article number: 12364
IMPA: 615149
Attachments
All
Size: 479.145KB
1
Brochures
Size: 479.145KB
1
Specifications
| Hydraulic Cylinder: Type | Double acting |
| Portable Hydraulic Jacks: Workload(tons) | 11 to 50 ton |
| Portable Hydraulic Jacks: Closed Height(mm) | larger as 201 mm |
| Portable Hydraulic Jacks: Max stroke (mm) | 151 mm and up |
