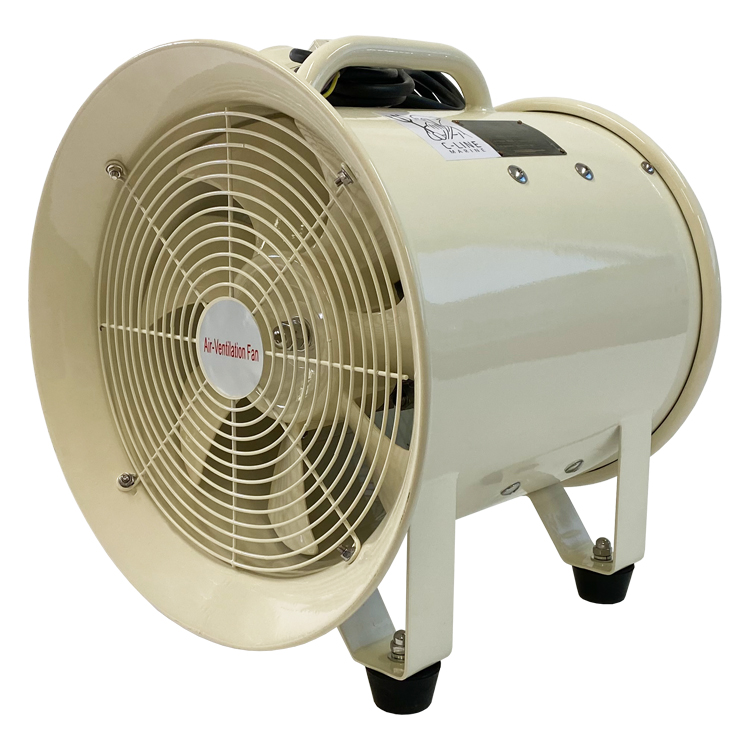

C-Line BTF-20. Portable explosion proof fan, 200 mm, 220V 50/60Hz, ATEX Zone 1 & 2, Cap 30 m3/min, without plug, IMPA 591417
The C-Line BTF-20 ATEX ventilator 200 mm is a powerful and compact ventilator for ventilation, extraction and air movement in environments where explosive atmospheres may occur. Thanks to its ATEX design, this ventilator is suitable for use in Zone 1 and Zone 2, making it ideal for professional applications in marine use, offshore, industry, tank cleaning and confined spaces. With a diameter of 200 mm and a capacity of 25-30 cbm/min, the C-Line BTF-20 provides effective air movement. The ventilator operates on 220-240 V and 50/60 Hz and has a power output of 180-230 W.
Documents
Internal Reference:
11115
Impa1:
591417
Specifications
| Explosion Proof Fans: Diameter(mm) | up to 400 |
| Explosion Proof Fans: Voltage(V) | 220/230/240 |
| Explosion Proof Fans: Capacity(cbm/min) | up to 90 |
